Covergold SL1000 Q

Name: Covergold SL1000 Q
Brand: Covergold
SKU: -
Availability: InStock
Rating: 5 (1 reviews)

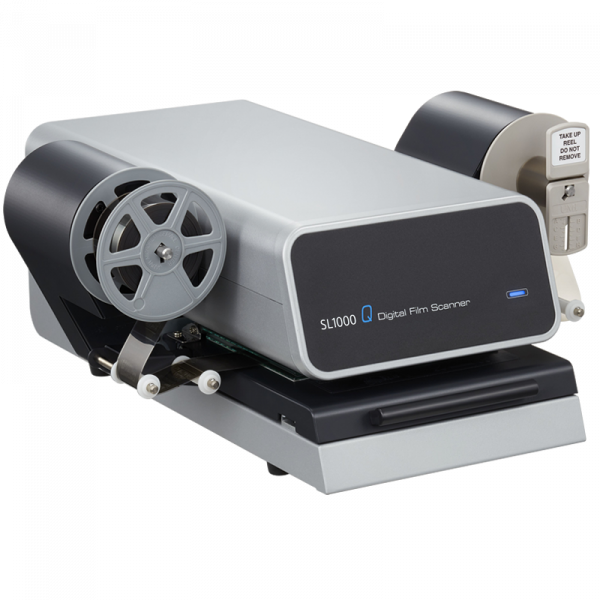

The SL1000Q (RFC) digital microfilm scanner offers a powerful and versatile scanning solution for all your microforms.

Images can be viewed and scanned in colour or black and white in as little as one second.

View and digitise microfiche jackets, 16mm & 35mm roll film, aperture cards, negative and positive colour film, plus much more.

The scanner’s small footprint and fast USB plug and play connectivity enables it to fit seamlessly into any library or office environment

Category: Covergold

Description

Features

SL-Touch Software supplied as standard, compatible with both touchscreen and normal monitors.
Film types supported: Colour Film/Monochrome Film, Negative Film/Positive Film, Micro Fiche Film, Jacket Film, Aperture Card, 16/35mm Roll Film, 16mm Cartridge Film (ANSI & M-Type), Micro Opaque, Colour transparencies and negatives up to 35mm.
Resolution: 100 – 600 dpi, Scan Speed 1 second.
Lens magnification: Optical Zoom 7 – 54x, Optical Zoom + Electrical Zoom 7 – 105x.
Focus adjustment: Auto or Manual.
Output format: JPEG, PNG, BMP, PDF, PDF multi page, TIFF(Compression/Non-compression/G4), TIFF multi page.
SL- Touch Software supplied
Touchscreen compatible
100-600 DPI
Optical resolution 430 DPI
less than 1 second per scan
Optical Zoom 7 to 54X
Electronic zoom 7 to 105X
Output – Jpeg – PNG-BMP-PDF-PDF Multipage- TIFF Compressed_ TIFF Non Compressed- TIFF G4-Tiff Multi page

Specifications

Type Digital Colour Film Scanner
Image Sensor
Colour Area CCD Sensor 20.16 Megapixel Light Source White LED for Colour
Gradation
Internal 36 bit Max. Scan Size 47mm x 34mm
Output
24 bit Colour, 8 bit Grayscale, 1 bit B/W Binary Scan Resolution 72/100/150/200/240/300/400/600 dpi
Film Type
Microfiche
16/35mm Roll Microfilm
16mm Cartridge Microfilm (ANSI & M-Type)
Aperture Cards
Micro – Opaque Cards
Colour transparencies Lens Magnification Optical Zoom: 6.8-54X Electrical
Zoom 54-105X
Focus Adjustment
Auto or Manual Scan Speed 1 second (Approximately)
File Type Supported
JPEG, TIFF, PNG, BMP, PDF
TIFF Multi-Page
PDF Multi-Page with/without OCR Output Size A2, A3, A4, Custom (Portrait/Landscape)
PC Connectivity
USB 3.0 or higher (USB 2.0 backwards compatible) Application Software SL-Touch (Included)
OS Compatibility
32-bit/64-bit OS Windows 7, 10 or greater Power Source AC 100-240V, 50/60Hz
Operating Environment Temperature: 10-35 °C, Humidity: 15 -85% (Recommended: 18-28 °C – 35-75% RH)
Environmental Standards
RoHS Compliant, CE (CB, EN Class A) Power Consumption < 0.5 W (Sleep) / 2.5 W (Standby) / <60 W (Scanning)
Dimensions
(WxDxH) 404mm x 436mm x 204mm Weight 15Kgs
Functions
Adjustable Image Masking, Adjustable Image Reduction, Batch Scan
Batch Search, Cropping, Deskew, Image Rotation (90° Steps), Horizontal
Flip, Negative/Positive Film, Optical & Electronic Magnification,
Image Adjustment, Real-Time View, Preview before Print/ Scan,
Scan to File, Scan to Print, Scan to USB, Sleep Mode,
View Mode, Multipage PDF creation, Thumbnail View
PC and Monitor not included. Options Manual Foot Switch Kit, M-Type Cartridge Adaptor Kit, A-Type Cartridge Adaptor Kit

Options

Warranty

12 Months Australia Warranty.

Install/Training

Docuvan can provide a the whole solution including options for Install and Training. We have many years experience with Bureaus and can offer advice and assist with training and install.
