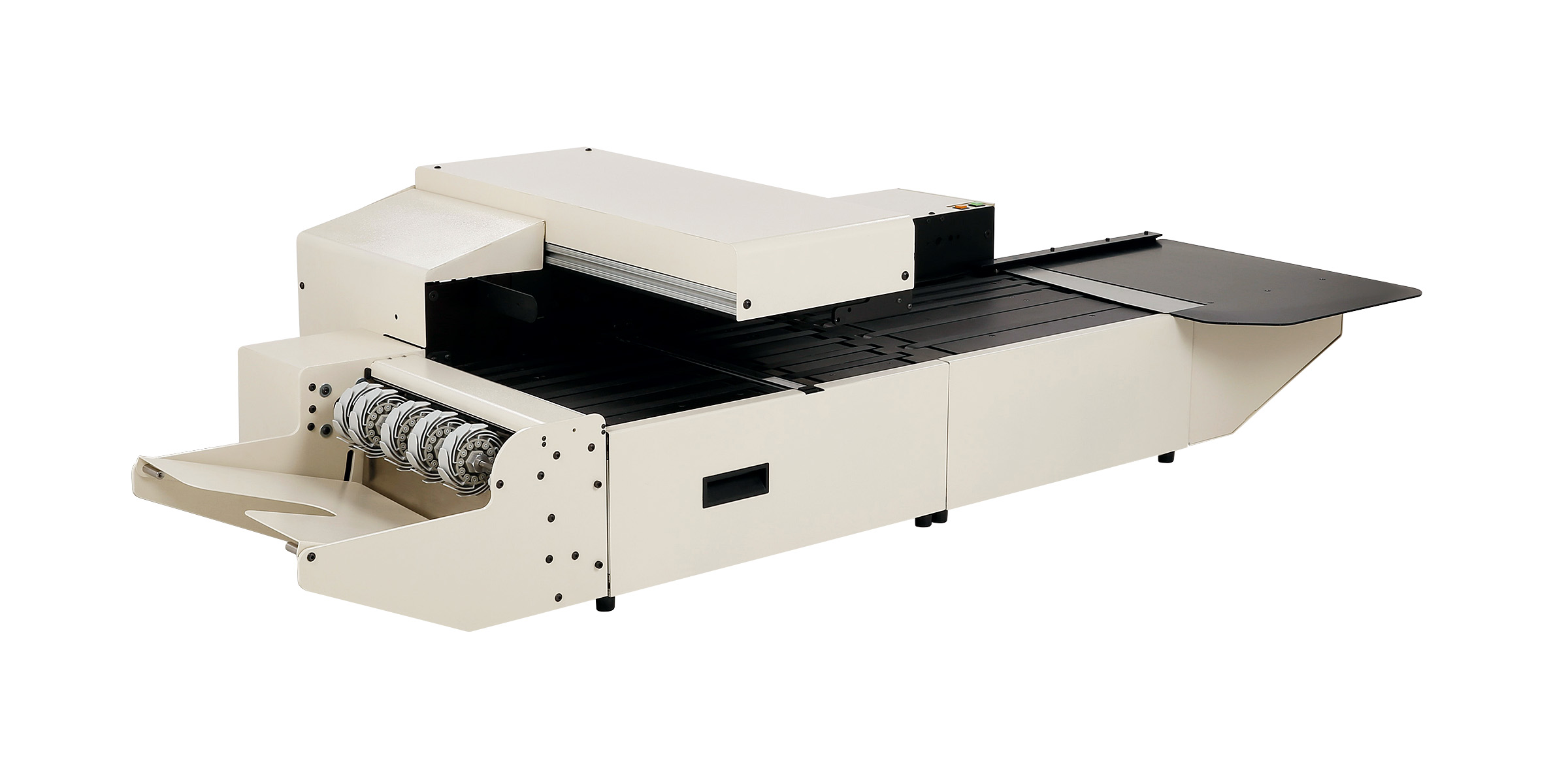

Buserdi Curator DG

The Buserdi Curator is the perfect curator of our historic and precious history.  It is designed  to be  less invasive in it’s approach to document scanning because it eliminates the pressure and friction placed on the paper by the rollers and belts in automatic document feeders. The curator now allows us to quickly and safely scan a large throughput of documents that in the past have needed to be scanned singularly because of their fragile nature.



Category:

The Buserdi Curator is a high throughput production scanner for fragile documents.

The CURATOR scanner was designed to be hand-fed by the operator to better protect documents at high scan speeds.
This is a less invasive approach to document scanning because it eliminates the pressure and friction placed on the paper by the rollers and belts in automatic document feeders.
FADGI 3 Star compliance at up to 110 Pages / Minute @ 400 DPI, A4 Landscape, Colour/Grayscale/B&W
Actual Average Human Speed 50 Pages / Minute
Efficiently feed documents by hand
A3 to A7 Document Size, Duplex Scanning
Vacuum driven Open Track transport for best document handling
Straight paper path stacking for fragile or thick documents that can’t be turned at scan time

Specifications

C3240-DG
Speed ​​B&W (A4 Landscape) 180 ppm (400 dpi)
Speed ​​Color (A4 Landscape) 180 ppm (400 dpi)
ADF Hand-feed
Duty Cycle No Limit
Format 28 ″, 711 mm
Capture Color, Grayscale and Black & White
Optical Resolution 400 dpi
Max document length 28 ″, 711 mm
Max document width 12.5 ″, 317.5 mm
Connection (s) USB 3.0
Interface BAPis
Size closed (L x H x P mm) 1600 x 400 x 700 mm
Weight (kg) 80 kg
Electric characteristics 110-240V 50 / 60Hz 3.63 A 400 W
Software include Web: Device driver, User utility, Demo test utility, ScanGrabber with OCR Engine, DICE test target with OpenDICE and AutoSFR
Feeding Left-justified feeding
Document Size 28 ″, 711mm – A7 105mm
Paper Thickness and Weight 55 g / m2 – 150 g / m2
Multi-feed Detection Ultrasonic
Illumination White LEDs
FILE FORMAT OUTPUT direct from the scanner Uncompressed color TIFF and BMP, JPEG (color, grayscale), TIFF Group IV (black and white) & JPEG2000 (optional)
FILE FORMAT OUTPUT post-processing PDF, PDF / A, OCR
Pre-image processing (Optional) Laser Barcode Reader (Document separator, endorser, labeling, numbering)
InkJet Printer (Optional) Pre or Post image
On scanner processing 15+ functions, Deskew, Border removal, Rotate, Color, Tone and Noise Corrections

CUSTOM FUNCTION DEVELOPMENT ask *

Options

Warranty

All Buserdi Scanners come with 12 Months Return to Base (RTB) Warranty for Parts and Labour.  This means you will need to arrange for the Scanner to be sent back to the Docuvan Office in Bayswater Victoria for any Warranty claim.

There are Optional Warranty Upgrades available for 1 to 5 Years Extended On-Site Warranty.

These cover Parts & Labour On-Site (we come to you) for the period selected and include the Extended Support below.   Please be aware these options do not cover the travel and accommodation costs associated with the On-Site Support.
We are happy to discuss the options with you, if you are interested.

There is also an Extended Support Package, available for 1 to 5 Years.   This is same day response by Phone, Email and Remote Connection Only.
We work with you to try and identify the problem.

Most issues can be diagnosed remotely and do not require a site visit.  However, if an issue can’t be sorted remotely, then the scanner will need to be returned to the Docuvan Office for further investigation and support.

Install/Training

Docuvan will provide a number of key environmental and IT Setup requirements prior to delivery of your scanner.  This will enable you to place the scanner in a suitable location and connect it to your network once it arrives.
It also means we will be as efficient as possible in getting you up to speed with your new scanner without typical IT delays,
once we come on site or remote connect to it for the setup, configuration and training.

Because the Bookeye has a built-in Linux PC and is managed from a simple interface on a touch screen, it very quick to get up to speed with.

There is also a web interface that can be used for setup and configuration of the scanning profiles from a PC on the same network, if you want to do it that way, using a Poweruser login.
We provide On-Site Training for multiple staff, if required.  This can be broken into Administrator and User Training, if required.

Alternatively, we offer remote training over the internet, using TeamViewer or Microsoft Teams, connected to your scanner, so we can configure the scanner to your needs as part of the training.
This can be more cost effective where travel and accommodation costs are prohibitive.  (Or we are subject to travel restriction such as during covid)

This would require the IT component to be pre-configured so it can be accessed remotely.



Rental

We offer a rental service for certain Bookeye Models.

Please contact us to enquire about this service:   [email protected]

Enquire About Bookeye
