Image Access Bookeye 5 V1A Professional

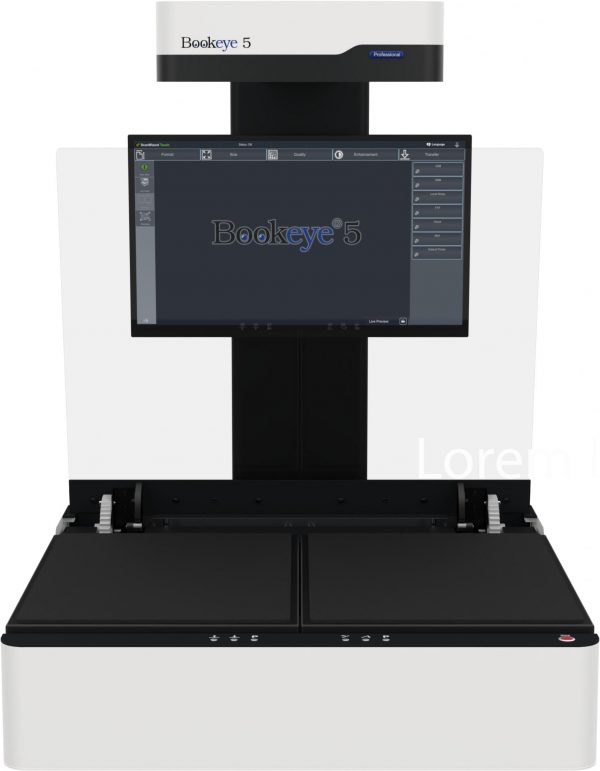

The Bookeye® 5 V1A is the world‘s only A1+ overhead book
scanner that accommodates both flat documents with or without the glass plate; as well as large, fragile bound documents,
using the protective V cradle for even more gentle scanning.
Bookeye 5 V1A scans A1+ formats up to 600 dpi resolution and
features an automatic book cradle for up to 100 mm height adjustment, a glass plate that opens automatically and of course, the
140° V-cradle.

The new Bookeye 5V1A Professional is the flagship model in the Bookeye range.

-Color book scanner for formats up to A1+, 600 x 600 dpi
-V-shaped book cradle 140 - 180 degrees
-27“ 4K display, 2 x USB ports
--client interface for capturing software solutions
-Motorized automatic cradle with lift up to 100 mm, glass plate
perfect for scans in flat mode
-AUTO mode triggers automatic scanning and opens the glass
plate after each scan
-Bookfold correction, automatic finger & thumb removal, auto
crop & deskew and anti-reflection mode
-Digital color balance, integrated ICC profile
-Easy installation via Scan2Net® technology

Specifications

Document
Maximum Document Size 635 x 850 mm (25 x 33.5 inches),
8% > DIN A1
Output
Scanner Resolution 600 x 600 dpi
Pixel Dimension 9.3 x 9.3 µm
Scan Speed Color DIN A1+ @ 150 dpi: 1.2 s
DIN A1+ @ 200 dpi: 1.5 s
DIN A1+ @ 300 dpi: 2.1 s
DIN A1+ @ 400 dpi: 2.8 s
DIN A1+ @ 600 dpi: 4.1 s
Color Depth 48 bit color, 16 bit grayscale
Scan Output 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality Exceeds FADGI ** guidelines, ISO 19264-1
Technical Specifications
Computer 64 bit Linux, Intel i3, quad core processor,
8 Gigabyte RAM, 320GB HDD for extra large jobs
Touchscreen 7 inch color WVGA (wide VGA) touchscreen
Monitor 27 inch 4K preview screen
USB Port 2 USB Ports 3.0
Interface 1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera CCD Kamera
Light Source White LEDs, tested according to IEC 62471, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime 50,000 h (typ.)
Dimensions
Dimensions Scanner
(H x W x D)
1.100 x 880 x 855 mm (43.3 x 34.6 x 33.7 inches)
Weight Scanner 77 kg (170 lbs.)
Electrical Specifications
Electrical Connection 100-240 V AC, 47 – 63 Hz (external power supply,
complies with ECO standard CEC level VI)
Power Consumption < 0.5 W (Sleep) / 2.5 W (Standby) /
75 W (Ready to scan) / 130 W (Scanning)
Ambient Conditions
Operating Temp 5 to 40 °C (40 to 105 °F)
Rel Humidity 20 to 80 % (non-condensing)
Noise 55 dB(A) (Book cradle motor working) /
< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)

Technical changes, errors and omissions excepted. All information subject to change.

Options

Warranty

All Bookeye Scanners come with 12 Months Return to Base (RTB) Warranty for Parts and Labour.  This means you will need to arrange for the Scanner to be sent back to the Docuvan Office in Bayswater Victoria for any Warranty claim.

There are Optional Warranty Upgrades available for 1 to 5 Years Extended On-Site Warranty.

These cover Parts & Labour On-Site (we come to you) for the period selected and include the Extended Support below.   Please be aware these options do not cover the travel and accommodation costs associated with the On-Site Support.
We are happy to discuss the options with you, if you are interested.

There is also an Extended Support Package, available for 1 to 5 Years.   This is same day response by Phone, Email and Remote Connection Only.
We work with you to try and identify the problem.

Most issues can be diagnosed remotely and do not require a site visit.  However, if an issue can’t be sorted remotely, then the scanner will need to be returned to the Docuvan Office for further investigation and support.

Install/Training

Docuvan will provide a number of key environmental and IT Setup requirements prior to delivery of your scanner.  This will enable you to place the scanner in a suitable location and connect it to your network once it arrives.
It also means we will be as efficient as possible in getting you up to speed with your new scanner without typical IT delays,
once we come on site or remote connect to it for the setup, configuration and training.

Because the Bookeye has a built-in Linux PC and is managed from a simple interface on a touch screen, it very quick to get up to speed with.

There is also a web interface that can be used for setup and configuration of the scanning profiles from a PC on the same network, if you want to do it that way, using a Poweruser login.
We provide On-Site Training for multiple staff, if required.  This can be broken into Administrator and User Training, if required.

Alternatively, we offer remote training over the internet, using TeamViewer or Microsoft Teams, connected to your scanner, so we can configure the scanner to your needs as part of the training.
This can be more cost effective where travel and accommodation costs are prohibitive.  (Or we are subject to travel restriction such as during covid)

This would require the IT component to be pre-configured so it can be accessed remotely.



Rental

We offer a rental service for certain Bookeye Models.

Please contact us to enquire about this service:   [email protected]
