Image Access Bookeye 5 V1A-C35/50

Bookeye ® 5 V1A-C35/C50 is the professional solution for digitization projects that require high quality images at maximum productivity, while eliminating strenuous, repetitive tasks required of an operator to get the job done.

Bookeye 5 V1A-C35/C50 scans originals up to A1 in size at high speeds, with the unique book cradle for books up to 50 cm thick. The motor-driven glass plate operates three modes: fixed glass plate, without glass plate, and with an automatic mode.

Categories: , , Tag:

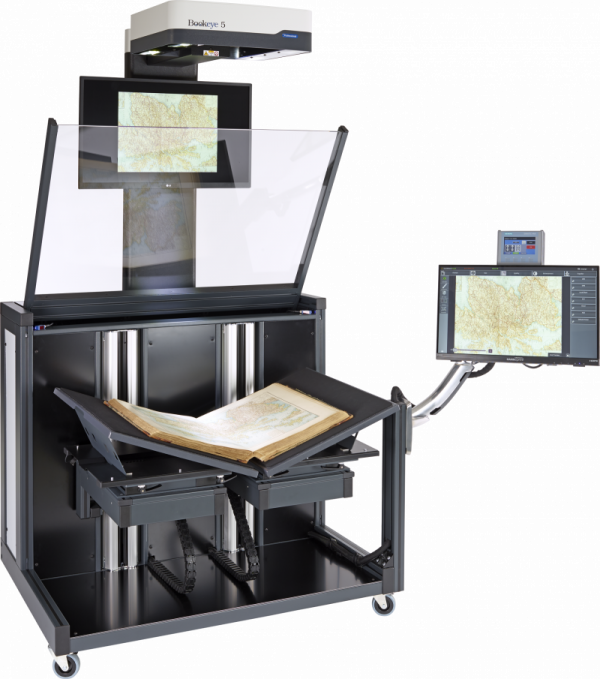

Bookeye 5 V1A-C35/C50 with a motorized book cradle for digitization projects

Bookeye® 5 V1A-C35/C50 is the professional solution for demanding digitization projects that require high-quality images at maximum productivity rates while eliminating strenuous, repetitive tasks required of an operator to get the job done.

The "biggest brother" of the book scanner family scans originals up to A1 in size at high speeds, with the unique book cradle for books up to 50 cm thick. The motor-driven glass plate operates three modes: fixed glass plate, without glass plate, and with an automatic mode.

Fully automatic operation, sensor-controlled pressure

In Auto Mode, the scanning process is fully automatic. Sensors in the book cradle plates control the pressure. The book cradle plates are motor driven and deal with a book thickness of up to 35 cm or 50 cm. Upgrade from 35 cm to 50 cm lifting height via a software key.

Together with software packages such as Batch Scan Wizard, BCS-2® and Goobi UCC, even the toughest requirements of a digitization project can be met.

Bookeye® 5 V1A-C35/C50 Book Scanner - Functions

  • Color overhead scanner for formats up to A1+
  • High resolution line sensor with 600 x 600 dpi
  • Open client interface for operation with BSW, BCS-2
  • Upgrade from 35 to 50cm lifting height via software key
  • V-shaped book cradle 140 - 180 degrees
  • Flexible book cradle enables V and flat mode scan positions
  • Motorized, book cradle supports books up to 30 kg/70 lbs.
  • Thickness Bookeye® 5 V1A-C35 -- 35 cm/14" with glass plate and 45 cm/18" without glass plate
  • Thickness Bookeye® 5 V1A-C50 -- 50 cm/20" with glass plate and 60 cm/24" without glass plate
  • Automatic motorized glass plate
  • Scanning with or without glass plate
  • The motor-driven glass plate operates three modes:
    fixed glass plate, without glass plate and with an automatic mode
  • User-friendly scan modes (Automatic / Book / V)
  • Regulated contact pressure due to automatic detection of the documents
  • Scanner freely accessible, also from right and left side
  • Laser assisted book fold correction - Scan bound documents without annoying shadows
  • Optimize images without rescanning, real time display of scanned images
  • Automatic finger and thumb removal
  • Automatic Crop & Deskew
  • Digital color balance - wide color gamut: supports sRGB, Adobe RGB, native RGB
  • Automatic white balance and black value
  • Scan2Net® -- Output to SMB, FTP, Printer, Email
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
    TIFF (Raw, G3, G4, LZW, JPEG) and many more

Bookeye® 5 V1A-C35/C50 Book Scanner - Features

  • 21 inch full HD color multitouch screen for simplified operation
  • Large 27 inch 4K preview screen
  • Intuitive touchscreen user interface on the control panel
  • User interface configurable in over 20 languages
  • Intel® CoreTM Gen 8 processor, 240GB SSD, 8GB RAM
  • LED lamps, no warm up, IR/UV free
  • Integrated, virus protected 64 bit Linux operating system
  • OS independent, runs with Windows 8, 10, 11, Linux, Mac
  • Uses any browser: IE, Safari, Chrome, Firefox
  • Scan2Net®-technology
  • FADGI, Metamorfoze, ISO 19264 compliant
  • Easy installation
  • Remote maintenance and analysis
  • One year of Full Coverage Warranty

Bookeye® 5 V1A-C35/C50 Book Scanner - Optionen

  • BE5-C50-OPT -- Software Option Upgrade from 35 up to 50 cm thickness
  • S2N-FSC -- Foot Switch for scanner, hardware accessory for batch scanning
  • BSW-P-BE5-02 * -- Batch Scan Wizard Pro Lizenz für Bookeye 5 V1A
  • Scan2OCR -- Background OCR option for Scan2Net scanners (Only in connection with Batch ScanWizard)
  • BE5-V1A-C50-SP12M -- Full Coverage Warranty -- Up to 5 years free spare parts & more

* only with the option: Client Interface & HD 600 dpi

Specifications

Document
Maximum Document Size635 x 850 mm (25 x 33.5 inches),
8% > DIN A1
Output
Scanner Resolution600 x 600 dpi
Pixel Dimension9.3 x 9.3 µm
Scan Speed ColorDIN A1+ @ 150 dpi: 1.2 s
DIN A1+ @ 200 dpi: 1.5 s
DIN A1+ @ 300 dpi: 2.1 s
DIN A1+ @ 400 dpi: 2.8 s
DIN A1+ @ 600 dpi: 4.1 s
Color Depth48 bit color, 16 bit grayscale
Scan Output24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File FormatsMultipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data and more
ICC ProfilesEmbedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
QualityExceeds FADGI ** guidelines, ISO 19264-1
Technical Specifications
Computer64 bit Linux, Intel i3, quad core processor,
8 Gigabyte RAM, 320GB HDD for extra large jobs
Touchscreen7 inch color WVGA (wide VGA) touchscreen
Monitor27 inch 4K preview screen
USB Port2 USB Ports 3.0
Interface1 GBit Fast Ethernet with TCP/IP based
Scan2Net® interface
CameraCCD Kamera
Light SourceWhite LEDs, tested according to IEC 62471, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime50,000 h (typ.)
Book Cradle, motorizedBookeye® 4 V1A-C35: 35 cm (13.8 .inch) lifting height
Bookeye® 4 V1A-C50: 50 cm (19.7 inch) lifting height
Dimensions
Dimensions Scanner
(H x W x D)		1740 x 1650 x 1000 mm (68.5 x 65 x 39.4 inch)
Weight Scanner166 kg (365 lbs.)
Electrical Specifications
Electrical Connection100-240 V AC, 50/60 Hz
Power Consumption33 W (Standby) / ≤ 90 W (Ready to scan, monitor on) /
≤ 130 W (Scanning) /
≤ 230 W (Fully automatic scan cycle)
Ambient Conditions
Operating Temp5 to 40 °C (40 to 105 °F)
Rel Humidity20 to 80 % (non-condensing)
Noise< 55 dB(A) (Fully automatic scan cycle) /
< 38 dB(A) (Scanning) / < 33 dB(A) (Standby)

Technical changes, errors and omissions excepted. All information subject to change.

Options

Warranty

All Bookeye Scanners come with 12 Months Return to Base (RTB) Warranty for Parts and Labour.  This means you will need to arrange for the Scanner to be sent back to the Docuvan Office in Bayswater Victoria for any Warranty claim.

There are Optional Warranty Upgrades available for 1 to 5 Years Extended On-Site Warranty.

These cover Parts & Labour On-Site (we come to you) for the period selected and include the Extended Support below.   Please be aware these options do not cover the travel and accommodation costs associated with the On-Site Support.
We are happy to discuss the options with you, if you are interested.

There is also an Extended Support Package, available for 1 to 5 Years.   This is same day response by Phone, Email and Remote Connection Only.
We work with you to try and identify the problem.

Most issues can be diagnosed remotely and do not require a site visit.  However, if an issue can’t be sorted remotely, then the scanner will need to be returned to the Docuvan Office for further investigation and support.

Install/Training

Docuvan will provide a number of key environmental and IT Setup requirements prior to delivery of your scanner.  This will enable you to place the scanner in a suitable location and connect it to your network once it arrives.
It also means we will be as efficient as possible in getting you up to speed with your new scanner without typical IT delays,
once we come on site or remote connect to it for the setup, configuration and training.

Because the Bookeye has a built-in Linux PC and is managed from a simple interface on a touch screen, it very quick to get up to speed with.

There is also a web interface that can be used for setup and configuration of the scanning profiles from a PC on the same network, if you want to do it that way, using a Poweruser login.
We provide On-Site Training for multiple staff, if required.  This can be broken into Administrator and User Training, if required.

Alternatively, we offer remote training over the internet, using TeamViewer or Microsoft Teams, connected to your scanner, so we can configure the scanner to your needs as part of the training.
This can be more cost effective where travel and accommodation costs are prohibitive.  (Or we are subject to travel restriction such as during covid)

This would require the IT component to be pre-configured so it can be accessed remotely.
