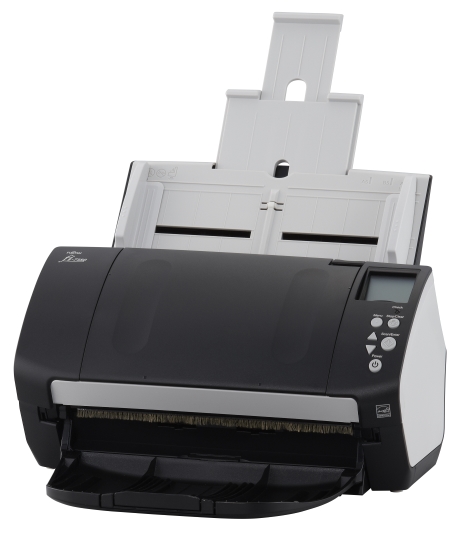

Fujitsu fi-7180

Compact ADF scanner offers best performance out of its class

The fi-7180 provides unmatched performance and market-leading document imaging capabilities. Even with its compact size, the device scans A4 landscape documents at 80 ppm/160 ipm (200/300 dpi), and is capable of loading up to 80 sheets at a time and scanning up to as many as 11,000 sheets a day.

  • Skew Reducer to ensure stable feeding
  • Paper Protection function to protect documents from damage
  • Ultrasonic multi-feed detection for security against lost images
  • Backlit LCD for easy operation viewing
  • Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
  • Comes with 2D Barcode for PaperStream
  • PaperStream Capture Pro available as an option

Features

Safe and reliable scanning for a seamless workflow

The fi-7180 provides stable paper feeding mechanisms, and ensures speedy and high quality scanning without relying on PC performance.

Prevent multi-feed errors with reliable feeding functions

With brake rollers functioning as the fundamental mechanism to separate each sheet of paper for clean feeding, the scanner’s high quality technologies provide reliable paper feeding. The Skew Reducer also helps improve feeding performance and prevents re-scanning that can result from document edges getting cut off. Even if papers jam, the Paper Protection function keeps precious documents safe by detecting anomalies in sound and monitoring paper feed distance so that users can comfortably scan their important business documents.

Skew Reducer

Independent separator rollers ensure that a document that is skewed will not affect the alignment of following sheets.



Minimizing risk of document damage with Paper Protection function

The Paper Protection function detects anomalies in sound and monitors paper feed distance. The fi-7180 keeps your important papers from being damaged.

Stress-free usability with a compact and user-friendly design

Suitable for any offices

With a very compact design, the fi-7180 fits on use anywhere, such as on desks, countertops, and inside small offices.

Easy and comfortable scanning operations

Use the LCD operation panel and backlit display, to scan directly from the scanner with the job-registration function, and complete various operations from adjusting scanning settings to checking existing error statuses on the scanner itself.

Advanced software for maximized efficiency

Connect business workflow with PaperStream IP and PaperStream Capture

The PaperStream IP scanner driver, supporting both TWAIN/ISIS, eliminates the need of making fine setting adjustments for OCR processes. It automatically converts images into exceptionally clean images, accelerating OCR even when scanning wrinkled, soiled and patterned documents.
With an intuitive interface, PaperStream Capture allows users to feed information into their organization’s workflow through various capture features during batch scanning effectively and efficiently.

Streamline workflow with automatic functions

The software is designed to maximize administrator and user usability. Operation is simple to eliminate time spent on sorting scanned images and boost overall productivity.
Documents divided with barcodes and patchcodes are automatically sorted into appropriate folders with a few quick configuration processes. Automatic sorting allows users to load mixed batches while focusing on other tasks.

Utilize advanced optional capture software – PaperStream Capture Pro

A high-quality, front end scanning software, PaperStream Capture Pro, enhances fi Series scanners’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing.

Specifications

Product Namefi-7180
Scanner TypeADF (Automatic Document Feeder), Duplex
Scanning Speed (1) (A4 Portrait)
(Color (2)/Grayscale (2)/Monochrome (3))
Simplex: 80 ppm (200/300 dpi)
Duplex: 160 ipm (200/300 dpi)
Image Sensor TypeColor CCD x 2 (front x 1, back x 1)
Light SourceWhite LED Array x 2 (front x 1, back x 1)
Optical Resolution600 dpi
Output Resolution (4)
(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5)
Output FormatColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background ColorsWhite / Black (selectable)
Document SizeMaximum (6)216 x 355.6 mm (8.5 x 14 in.)
Minimum50.8 x 54 mm (2 x 2.1 in.)
Long paper scanning (7)5,588 mm (220 in.)
Paper Weight (Thickness)Paper27 to 413 g/m² (7.2 to 110 lb) (8)
Plastic Card1.4 mm (0.055 in.) or less (9)(10)
ADF Capacity (11)(12)80 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume (13)11,000 Sheets
Multifeed DetectionOverlap detection (Ultrasonic sensor), Length detection
Paper ProtectionLag detection, Sound detection (iSOP) (14)
Interface (15)USB 3.0 / USB 2.0 / USB 1.1
Power RequirementsAC 100 to 240 V ±10 %
Power ConsumptionOperating mode42 W or less
Sleep mode1.8 W or less
Auto Standby (Off) modeLess than 0.35 W
Operating EnvironmentTemperature5 to 35°C (41 to 95°F)
Relative Humidity20 to 80% (non-condensing)
Environmental ComplianceENERGY STAR®, RoHS
Dimensions (16) (W x D x H)300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight4.2 kg (9.3 lb)
Supported Operating SystemWindows® 10 (17), Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 (18), Linux (Ubuntu) (19)(20)
Included Software / DriversPaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver (19), PaperStream Capture, ScanSnap Manager for fi Series (19), Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ (20), Scanner Central Admin, 2D Barcode for PaperStream (20)
Image Processing FunctionsMulti image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Cropping, Static threshold, Moire removal
Included ItemsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
  1. Actual scanning speeds are affected by data transmission and software processing times.
  2. Indicated speeds are from using JPEG compression.
  3. Indicated speeds are from using TIFF CCITT Group 4 compression.
  4. Selectable maximum density may vary depending on the length of the scanned document.
  5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
  6. Scans folded documents of up to 297 x 432 mm (11.7 x 17 in.) with carrier sheet scanning.
  7. Capable of scanning documents longer than A4 (210 x 297 mm / 8.3 x 11.7 in.) sizes. When using PaperStream IP (TWAIN/ISIS) to scan at 200 dpi, the maximum scanning length is 5,588 mm (220 in.).
  8. Thicknesses of up to 127 to 209 g/m² (34 to 56 lb) can be scanned for A8 (52 x 74 mm / 2.1 x 2.9 in.) sizes.
  9. Capable of scanning up to 1.25 mm (0.049 in.) when scanning in landscape orientation at 300 dpi (80 ppm).
  10. Capable of scanning up to 3 cards at a time (Note: does not set more than one embossed card at a time).
  11. Maximum capacity depends on paper weight and may vary.
  12. Capable of setting additional documents while scanning.
  13. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
  14. Intelligent Sonic Paper Protection.
  15. Connection with USB 3.0 / 2.0 requires the USB port and hub to support USB 3.0 / 2.0. Also note that scanning speed slows down when using USB 1.1.
  16. Excludes the ADF paper chute and stacker.
  17. fi Series scanners do not run with Windows® 10 ARM-based PCs.
  18. Requires PaperStream IP 2.2.0 or earlier.
  19. Functions equivalent to those offered by PaperStream IP may not be available with the Image Scanner Driver for Linux and WIA Driver.
  20. Refer to the fi Series Support Site for driver/software downloads and full lineup of all supported operating system versions.

Options

Warranty

Warranty

12 Months Fujitsu Australia Warranty.

Install/Training

Docuvan can provide a the whole solution including options for Install and Training.  We have many years experience with Bureaus and can offer advice and assist with training and install.

Rental

We offer a rental service for certain Sacnners.

Please contact us to enquire about this service:   [email protected]

Enquire About Fujitsu
